Product Description

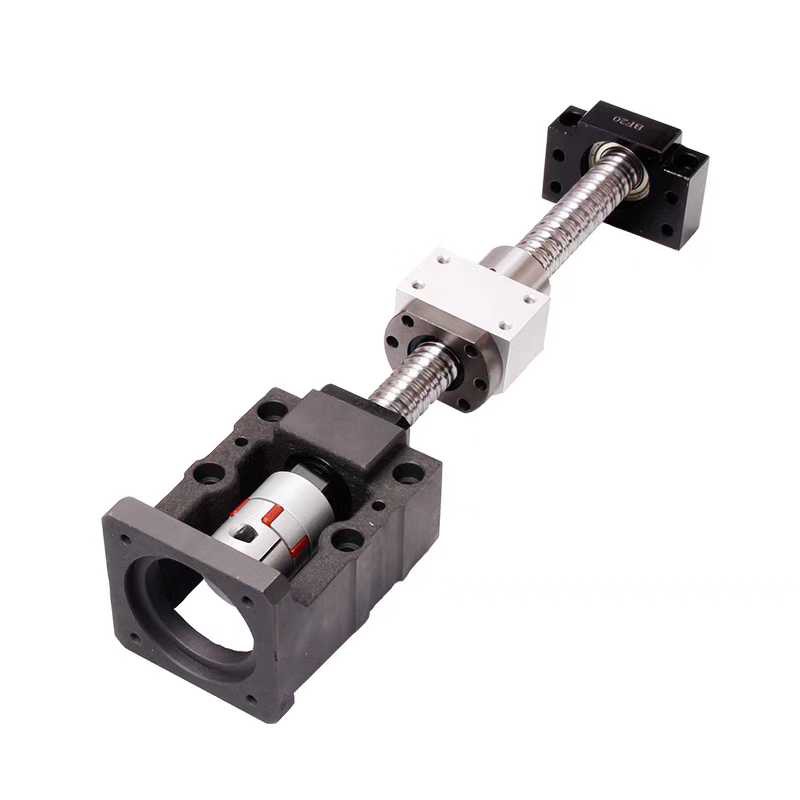

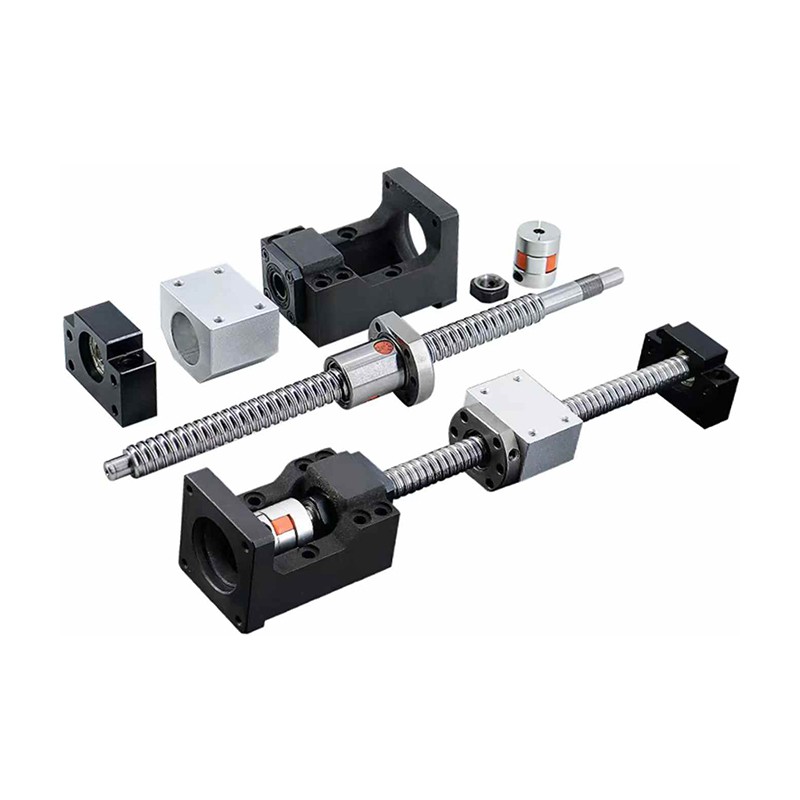

The Ball Screw Rod Assembly is the core unit for achieving precision linear motion. Designed for efficient transmission and easy installation, it comprises: 1 ball screw with helical raceway (transmission core), 1 drive nut with integrated ball recirculation system (converts rotation to linear motion), 1 nut support for securing the nut, 1 pair of BKBF (or EKEF/FKF) screw blocks (centering and supporting both ends of the screw to minimize radial runout), and 1 coupling connecting the screw to the motor (transmitting torque and compensating for installation misalignment). For motor integration requirements, a motor mount can be additionally provided, enabling direct compatibility with precision drive systems.
Features
High precision
Ball point contact, low friction, accurate positioning, CNC machine tool positioning can be controlled at the micron level, the repetition of positioning error is very small, to ensure the consistency of automated production.
High efficiency
Transmission efficiency of over 90%, energy saving 30% -50% than the sliding screw, and rapid response, such as high-speed machining centres can be quickly adjusted speed, positioning, and improve processing efficiency.
High load-bearing
Ball and raceway contact stress uniformity, reasonable design parameters, can withstand large axial, radial load, such as large gantry milling machine can carry several tonnes of cutting force, high quality materials, fine craftsmanship, hard and wear-resistant surface.
Long life
Rolling friction to low wear, with good lubrication, sealing, can significantly extend the use of time.
Our Services
Quality Assurance and Certification
In compliance with international standards ISO 3408 and DIN 69051, Jiesheng ball screw assemblies undergo comprehensive quality control throughout the entire production process-from incoming raw material inspection and core component machining to final precision/load/lifespan testing-and are certified for compliance.
Jiesheng Ball Screw Production: Following international standards, we implement full-process control through raw material inspection → component machining → multi-dimensional finished product testing, all certified for compliance.
Customization and Product Options
To address the differentiated needs of equipment across various industries, we offer comprehensive customization services: Beyond standard length trimming, material customization (e.g., high-strength alloy steel, corrosion-resistant stainless steel), and precision grade adaptation (C3/C5/C7 grades available upon request), we also tailor lead parameters (e.g., 5mm/10mm/20mm lead), protective structures (e.g., integrated dust seals, external shields), and preload adjustment solutions. This ensures each customized product precisely matches specific application scenarios, maximizing transmission efficiency.
Global Delivery and Logistics
We prioritize delivery efficiency, building a logistics support system centered on "rapid and reliable" service: For global shipping, we partner with leading carriers like DHL to cover major industrial regions, ensuring efficient cargo flow. For cross-border operations, dedicated teams assist with customs documentation preparation and clearance tracking to prevent procedural delays. Ample inventory of standard models enables most orders to ship within 48 hours, with multi-faceted coordination minimizing customer wait times.
Competitive Pricing and Flexible Payment Options
Leveraging economies of scale and supply chain integration capabilities, Jiesheng Transmission delivers industry-competitive pricing while maintaining product quality. Long-term partners benefit from tiered volume discounts, with additional annual volume rebates for reaching agreed purchase thresholds. Payment options include T/T (wire transfer), L/C (letter of credit), and others, adaptable to client financial workflows to reduce capital turnover pressure.
Product Information
|
Product Name |
Ball screw rod assembly |
|
Material |
Alloy steel, chrome-molybdenum alloy steel, stainless steel, bearing steel. |
|
Length |
Length can be customised according to customer requirements. |
|
Applications |
Machine tools, automation equipment, aerospace, military, semiconductor manufacturing, medical equipment and precision measuring instruments. |
|
Services |
We can manufacture products according to drawings or samples, and support sending samples. |
|
Accuracy Grade |
C3/C5/C7 |
|
Packaging |
Plastic bag in box or wooden case. |
|
Delivery time |
According to customer requirements. |

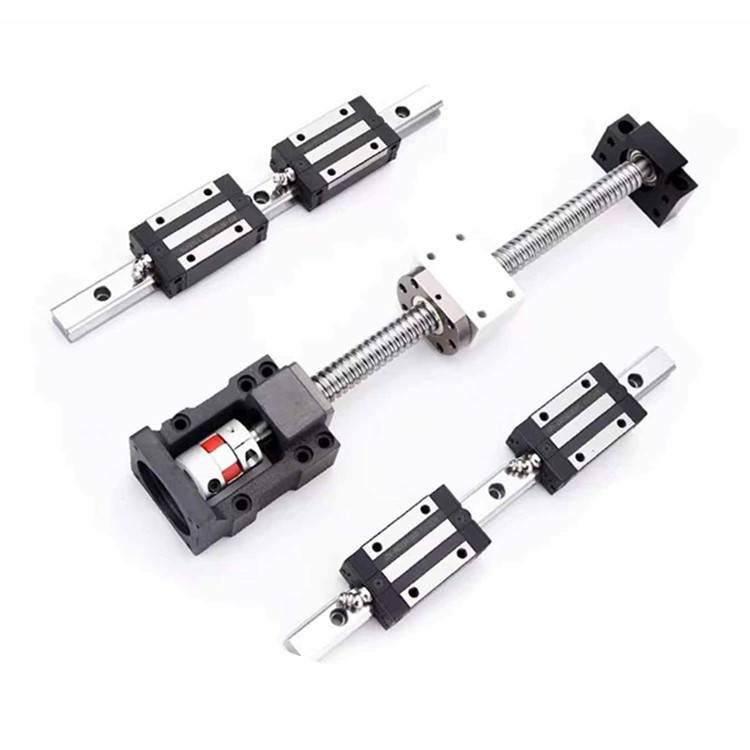

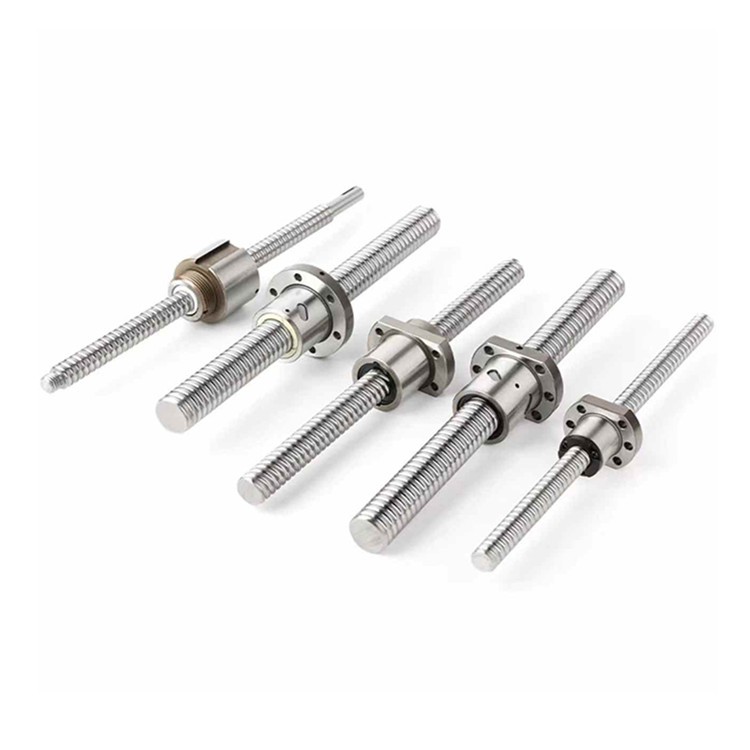

Product Picture

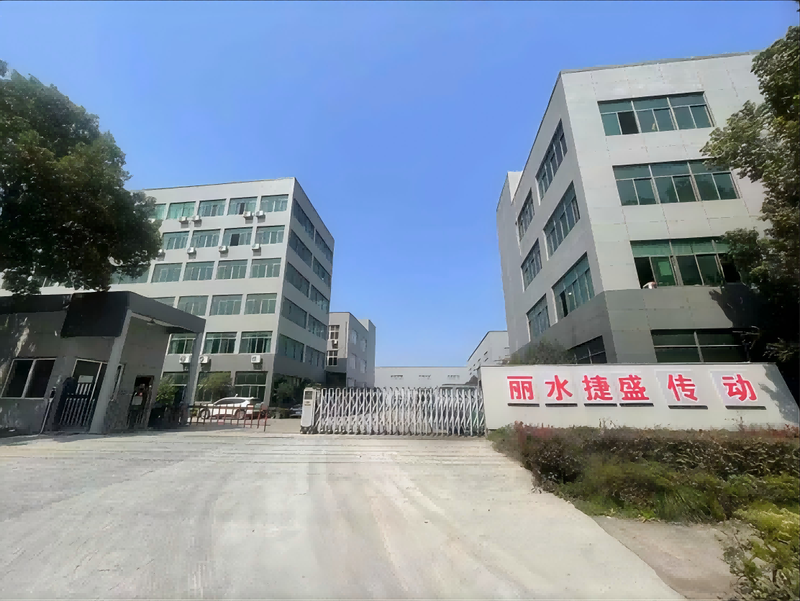

Company Profile
