Product Information

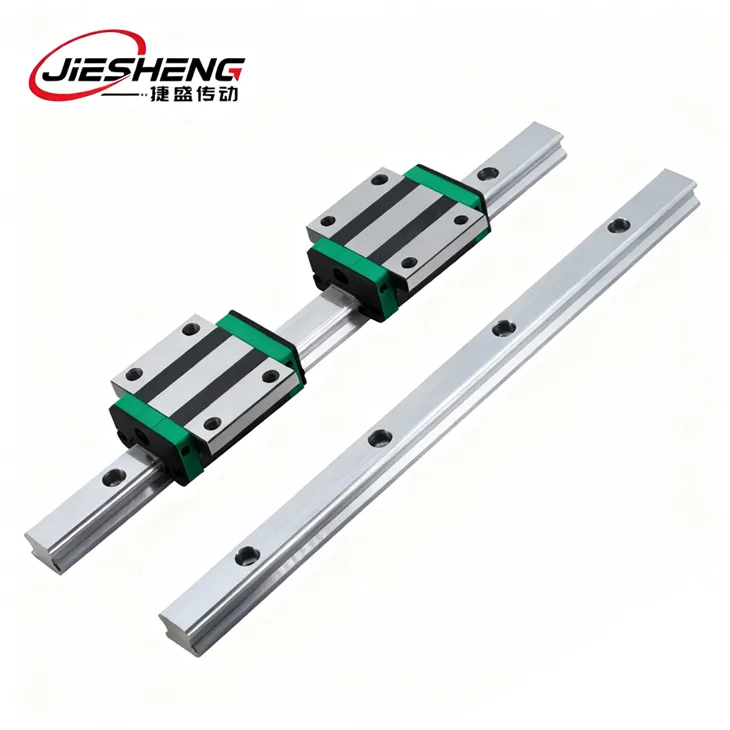

This spiral guideway adopts an integrated precision forming structure with accurate positioning and stable rigidity, effectively reducing runout and clearance during operation.Traditional split guideways are complicated to assemble, difficult to ensure concentricity, and prone to shaking and wear after long-term use.

Recommendation: To avoid jamming or deviation caused by mismatched specifications, please provide the guideway model and matching installation dimensions when ordering this spiral guideway.

Product Features

Features of the RG Series Ball Screw Guide Rail

Core Structural Innovation

Replacing traditional steel balls with roller-type rolling elements, this design employs line contact between the rolling elements, guide rails, and sliders. Combined with a 45-degree contact angle, it overcomes the limitations of conventional point contact, achieving equal rigidity and load capacity in all four directions-up/down and left/right-for more balanced and stable force distribution.

Exceptional Performance

Under heavy loads, rollers exhibit minimal elastic deformation. Their ultra-high rigidity significantly enhances machining precision, meeting high-accuracy operational demands. Simultaneously, superior load-bearing capacity extends guide rail lifespan, reducing equipment maintenance and replacement costs.

Wide Range of Applications

Leveraging its high rigidity and heavy load advantages, it suits high-speed automated industrial machinery and various equipment with stringent requirements for rigidity and load capacity. Balancing precision and durability, it provides reliable support for efficient and stable equipment operation.

Specification Parameters

Model	Component size (mm)			Slide size (mm)														Roller guide size (mm)							Dimensions of fastening bolts for guide rails	Basic dynamic load rating	Basic static rated load	Allowable static moment			Weight
																												Mr KN-M	Mp KN-M	My KN-M	Block kg	Guide kg/m
	H	H1	N	W	B	B1	C	C1	L1	L	K1	G	*M1**	T	T1	H2	H3	Wr	Hr	D	h	d	P	E	(mm)	C (kN)	CO (kN)
RGW25CC	36	5.5	24	70	57	6.5	45	40	64.5	97.9	15.75	12	M8	9.5	10	6.2	6	23	23.6	11	9	7	30	20	M6×20	27.7	57.1	0.758	0.605	0.605	0.67	3.08
RGW25HC									81	114.4	24															33.9	73.4	0.975	0.991	0.991	0.86
RGW300C	42	6	31	90	72	9	52	44	71	109.8	17.5	12	M10	9.5	10	6.5	11	28	28	14	12	9	40	20	M8×25	39.1	82.1	1.445	1.06	1.06	1.06	4.41
RGW30HC									93	131.8	28.5															48.1	105	1.846	1.712	1.712	1.42
RGW35CC	48	6.5	33	100	82	9	62	52	79	24	16.5	12	M10	12	13	9	13	34	30.2	14	12	9	40	20	M8×25	57.9	105.2	2.17	1.44	1.44	1.61	6.06
RGW35HC									106.5	151.5	30.25															73.1	142	2.93	2.6	2.6	2.21
RGW45CC	60	8	38	120	100	10	80	60	106	53.2	21	12.9	M12	14	15	10	14	45	38	20	17	14	52.5	22.5	M12×35	92.6	178.8	4.52	3.05	3.05	3.22	9.97
RGW45HC									139.8	87	37.9															116	230.9	6.33	5.47	5.47	4.41
RGW55CC	70	10	44	40	116	12	95	70	125.5	83.7	27.75	12.9	M14	16	17	12	18	53	44	23	20	16	60	30	M14×45	130.5	252	8.01	5.4	5.4	5.18	13.98
RGW55HC									173.8	232	51.9															167.8	348	11.15	10.25	10.25	7.34
RGW65CC	9	12	54	170	142	14	110	82	160	232	40.8	12.9	M16	22	23	15	15	63	53		22	18	75	35	M16×50	213	411.6	16.20	11.59	11.59	11.04	20.22
RGW65HC					185				223	295	72.3															275.3	572.7	22.55	22.17	22.17	15.75
RGW85HC	110	15	65	215			40	70	254	349		14	M20	24	26	21		85	73	35	28	24	90	45	M20	460	945.2	45600	45600	51420	21.6	35.2
RGW100HC	120	15	75	250	220		200	100	286	394		16	M20	25	30	23		100	80	39	32	26	105	52.5	M24	547	1330	61200	61200	73140	31.5	46.8
RGW125HC	160	24.5	98	320	270		205	102.5	360	191		16	M20	30	45	23		125	115	48	45	33	120	60	M30	1040	1924	123176	123176	114438	65.5	84.6

Model	Component size (mm)			Slide size (mm)												Roller guide size (mm)							Dimensions of fastening bolts for guide rails	Basic dynamic load rating	Basic static rated load	Allowable static moment			Weight
																										MR kN-m	Mp kN-m	My kN-m	Block kg	Guide kg/m
	H	H1	N	W	B	B1	C	L1	L	K1	G	Mx1	T	H2	H3	Wr	Hr	D	h	d	P	E	(mm)	C (kN)	CO (kN)
RGH25CA	40	5.5	12.5	48	35	6.5	35	64.5	97.9	20.75	12	M6×8	9.5	10.2	10	23	23.6	11	9	7	30	20	M6×20	27.7	57.1	0.758	0.605	0.605	0.55	3.08
RGH25HA							50	81	114.4	21.5														33.9	73.4	0.975	0.991	0.991	0.7
RGH30CA	45	6	16	60	40	10	40	71	109.8	23.5	12	M8x10	9.5	9.5	13.8	28	28	14	12	9	40	20	M8×25	39.1	82.1	1.445	1.06	1.06	0.82	4.41
RGH30HA							60	93	131.8	24.5														48.1	105	1.846	1.712	1.712	1.07
RGH35CA	55	6.5	18	70	50	10	50	79	124	22.5	12	M8x12	12	16	19.6	34	30.2	14	12	9	40	20	M8×25	57.9	105.2	2.17	1.44	1.44	1.43	6.06
RGH35HA							72	106.5	51.5	25.25														73.1	142	2.93	2.6	2.6	1.86
RGH45CA	70	8	20.5	86	60	13	60	106	53.2	31	12.9	M10x17	16	20	24	45	38	20	17	14	52.5		M12×35	92.6	178.8	4.52	3.05	3.05	2.97	9.97
RGH45HA							80	139.8	87	37.9														116	230.9	6.33	5.47	5.47	3.97
RGH55CA	80	10	23.5	100	75	12.5	75	125.5	83.7	37.75	12.9	M12×18	17.5	22	27.5	53	44	23	20	16	60	30	M14×45	130.5	252	8.01	5.4	5.4	4.62	13.98
RGH55HA							95	173.8	232	51.9														167.8	348	11.15	10.25	10.25	6.4
RGH65CA	90	12	31.5	126	76	25	70	160	232	60.8	12.9	M16×20	25	15	15	63	53	26	22	18	75	35	M16×50	213	411.6	16.20	11.59	11.59	8.33	20.22
RGH65HA							120	223	295	67.3														275.3	572.7	22.55	22.17	22.17	11.62
RGH85HA	110	15	35.5	156	100		140	254	349		14	M18×2	30	21		85	73	35	28	24	90	45	M20	460	945.2	51420	45600	45600	14.7	35.2
RGH100HA	120	15	50	200	130		200	286	394		16	M20×2	33	23		100	80	39	32	26	105	52.5	M24	547	1330	73140	61200	61200	24.5	46.8
RGH125HA	160	24.5	57.5	240	184		205	360	491		16	M24×3	40	23		125	115	48	45	33	120	60	M30	1040	1924	114438	123176	123176	46	84.6

Product Display

RG Series Installation Recommendations

Due to its roller structure and four-way high rigidity characteristics, installation precision directly impacts performance for the RG Series. The core process is as follows:

Pre-Installation Preparation

Installation Surface Preparation: Remove oil and burrs, grind to a roughness ≤ Ra3.2μm; inspect flatness (single rail ≤ 0.02mm/m, parallel height difference for multiple rails ≤ 0.01mm).
Product Verification: Inspect guide rail/slider appearance (smooth rollers, no scratches). Prepare accessories including bolts (minimum grade 8.8) and lithium-based grease.

Core Installation Steps

Guide Rail Fixing: Align reference edge with installation line. Pre-tighten end bolts (50% torque). After verifying straightness ≤0.01mm/m with dial indicator, tighten bolts from center to ends.
Slider Installation: Clean and apply grease, then smoothly insert into guide rail. For multiple sliders, use positioning rods to calibrate spacing and symmetrically tighten connecting bolts.
Preload Adjustment: Select rollers or adjust clearance based on light/medium/heavy preload requirements. Push slider to confirm uniform resistance without stuttering.

Post-Installation Adjustment & Protection

Lubrication & Dust Protection: Fill roller channels with grease (test seals for automatic lubrication); install dust caps; add bellows covers in dusty environments.
Testing:

No-load reciprocation: 10-20 cycles (no noise, uniform resistance)

80% rated load operation: 30 minutes, temperature ≤40°C, precision within tolerance.

Special Installation Considerations

Parallel Multiple Rails: Install reference rail first. Use laser interferometer to verify follower rail parallelism ≤0.005mm/m. Add intermediate supports for large spacing.
Vertical/Inclined Installation: Install lower limit block vertically. For inclines >30°, install anti-fall device. Relubricate every 10 hours.

Maintenance Guide

RG Series Linear Guide Maintenance Guide

Daily Maintenance

Replenish lithium-based grease every 100-500 operating hours (shorter intervals in dusty/humid environments), filling the roller channels completely. Daily: Wipe dust from guide rails. Weekly: Inspect dust seals for integrity and clean debris from bellows covers (in dusty conditions).

Condition Monitoring

Before startup, push the slide block to check resistance (no stuttering or abnormal noise). During operation, monitor vibration and noise. Monthly, measure guide rail straightness (≤0.01mm/m). Quarterly, retighten bolts (per manual torque).

Fault Handling

For stuttering, first remove dust and replenish grease; if ineffective, replace worn rollers and grind guide rail scratches (roughness ≤ Ra3.2μm). For precision loss, calibrate guide rails; if preload fails, replace rollers with original grade.

Long-Term Maintenance

Annually disassemble slides to clean raceways and replace dust seals. Replace guides when wear exceeds 0.02mm or hardness falls below HRC58. Store idle guides coated with rust-preventive oil in vacuum-sealed containers at 5-30°C with humidity ≤60%.
