Product Information
This ball nut housing adopts an integrated molding design instead of the traditional split structure, with stronger rigidity and more accurate positioning.Traditional split housings are complex to assemble, hard to guarantee concentricity, and prone to abnormal noise and wear during long-term operation.
Recommendation: To avoid eccentricity and jamming caused by mismatched sizes, please provide the screw nut model and installation dimensions when ordering this ball nut housing.
|
Product Name |
1605 ball screw nut housing |
|
Material |
Aluminium |
|
Colour |
Silver white |
|
Advantage |
Standard connection size, strict shape and position tolerance, special customisation acceptable, corrosion resistance, wear resistance, strong impact resistance. |
|
Packing |
1. Plastic bag with box or wooden case. 2. According to customer's requirement. |
|
Delivery time |
3-7 days for sample order, 7-30 days for bulk order. Depends on the actual shipping situation. |

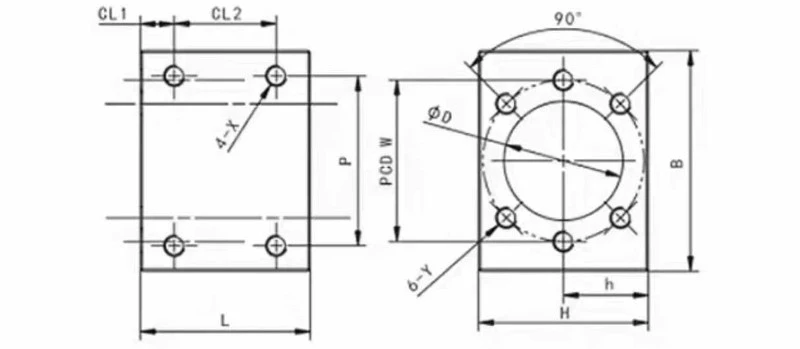

Specification Parameters
|
1605-3210 Screw Nut Seat (SSX) |
||||||||||||
|
Unit: mm |
||||||||||||
|
PARCA NO |
SOMUN |
D |
B |
H |
h |
L |
CL1 |
CL2 |
P |
X |
W |
Y |
|
DSG16H |
1605 |
28 |
52 |
40 |
20 |
40 |
8 |
24 |
40 |
M5 |
38 |
M5 |
|
1610 |
||||||||||||
|
DSG20H |
2005 |
36 |
62 |
44 |
22 |
40 |
8 |
24 |
48 |
M6 |
47 |
M6 |
|
2010 |
||||||||||||
|
DSG 25H |
2505 |
40 |
66 |
48 |
24 |
40 |
8 |
24 |
50 |
M6 |
51 |
M6 |
|
2510 |
||||||||||||
|
DSG 32H |
3205 |
50 |
86 |
62 |
31 |
40 |
8 |
24 |
66 |
M8 |
65 |
M8 |
|
3210 |
||||||||||||

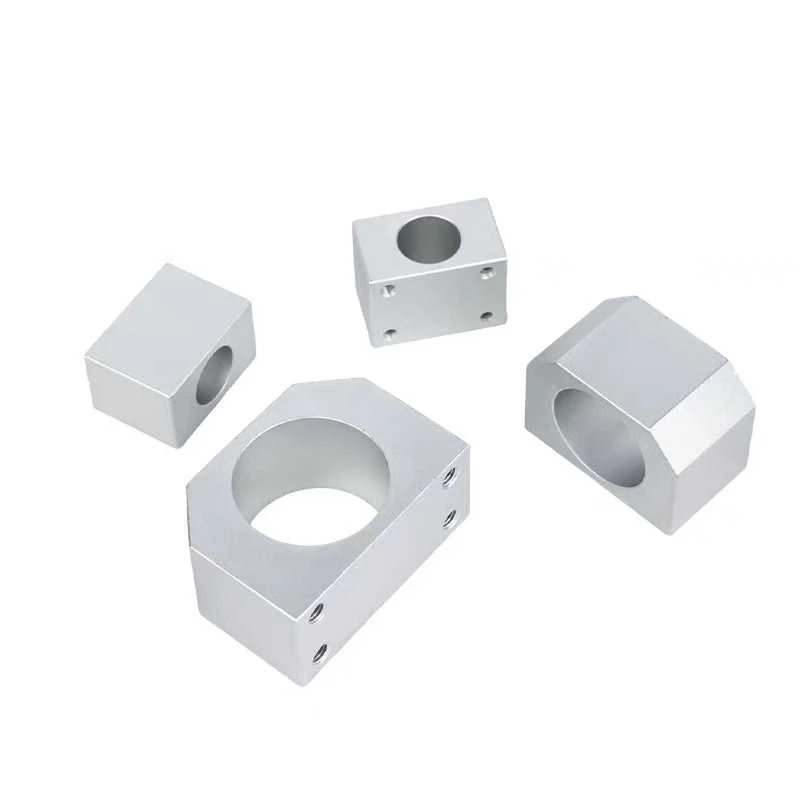

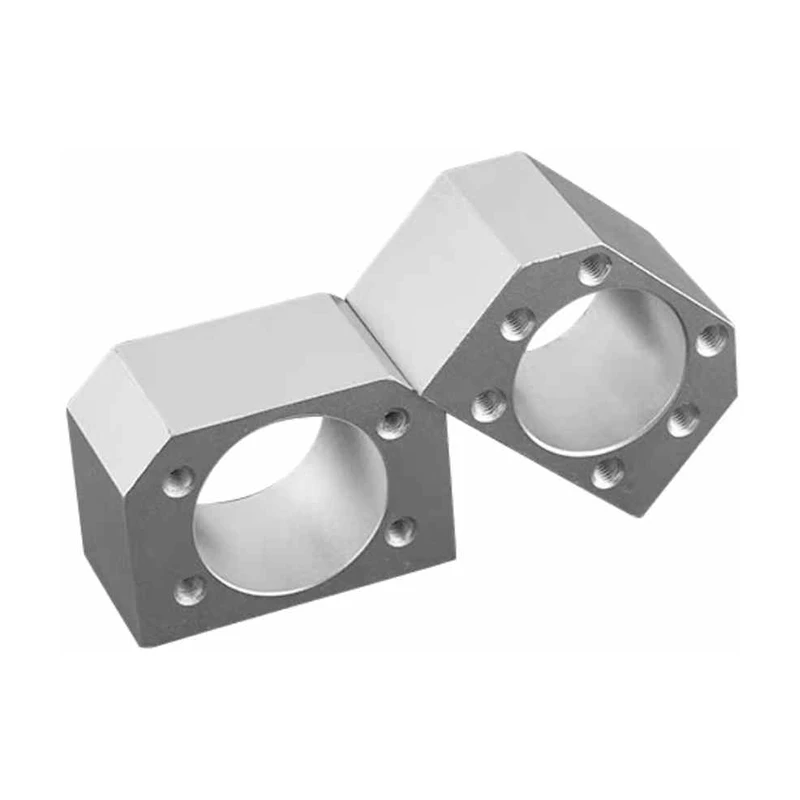

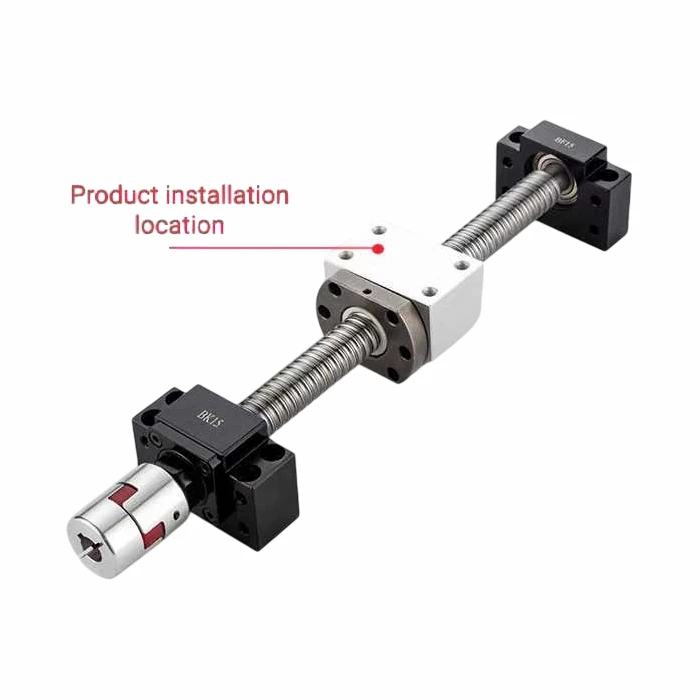

Product Pictures
