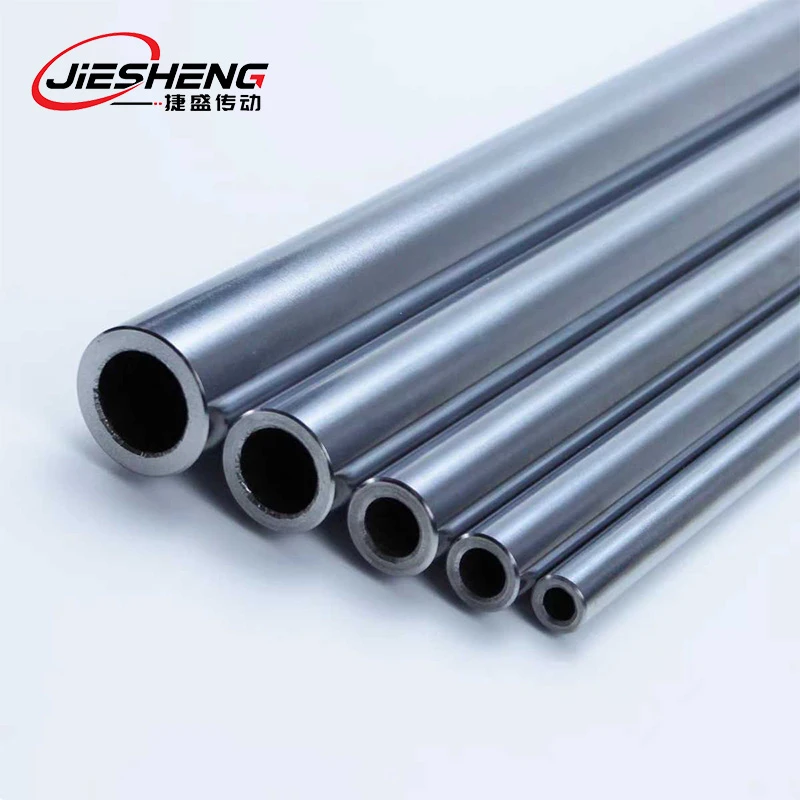

Rail Shaft

Rail Shaft
Details:
This guide shaft is specially designed for automated transmission equipment, precision machine tools and linear motion modules. It is precisely ground from high-quality high-carbon alloy steel with excellent straightness accuracy, suitable for shaft diameters ranging from φ8 to φ50mm. Featuring sufficient rigidity, accurate guidance and smooth operation, it can cooperate with sliders and bearings to complete high-frequency reciprocating movement, effectively avoiding operation offset, jitter and stuttering, ensuring the linear motion accuracy and equipment stability. It is widely used in CNC equipment, automatic production lines, precision testing instruments and non-standard transmission equipment.
Send Inquiry
Description
Send Inquiry

Product Features



High Precision

Precise positioning, can make the moving parts to keep accurate position and trajectory, like precision machine tools can achieve micron-level positioning. High repeatability of multiple runs ensures stable product quality in automated assembly lines and other equipment.


High Load Bearing

Large diameter, excellent structure, can withstand large radial and axial loads, such as cranes and other equipment to support heavy objects. Optimised design makes the load uniformly distributed, enhancing the load and life.


High Reliability

Sturdy structure, calculated by strength and rigidity, not easy to deform and fracture. Selection of high-quality materials, quenched, chrome-plated and other treatments, wear-resistant, corrosion-resistant, fatigue-resistant, and can operate stably in harsh environments.


Low Friction and High Efficiency


Fine surface treatment, low friction coefficient with matching parts, reduce energy consumption and wear. It can transmit power efficiently and make automated robots and other equipments run smoothly and respond quickly.


Strong Compatibility

A variety of installation methods are designed to fit different equipment structures. Standardised production, size, precision, with various types of transmission components, versatility, interchangeability.


Good Shock Absorption and Buffer


Rely on elastic deformation to absorb vibration and reduce the impact during operation. It can buffer the impact of starting and stopping of moving parts and sudden situation to protect the equipment.




Specification Parameters








Diameter
(mm)

WC (WCAS)

WCS

Precision (µm)   (µm)
g6

Standard Lenth (mm)

Effective Condition Hard Bet

Weight

(kgf/m)

100

200

300

400

500

600

700

800

900

1000

200

1500

1800

2000

2500

3000

3500

4000

5000

6000
3

WC3

WCS3

-2-8



Not more than 10

0.06

4

WC4

WCS4

4~-12



0.10

5

WC5

WCS5



0.15

6

WC6

WCS6



0.23

8

WC8

WCS8

-5~14



Not less than 10

0.40

10

WC10

WCS10



0.62

12

WC12

WCS12

6~-17



0.89

13

WC13

WCS13



1.04

16

WC16

WCS16



Not less than 15

1.58

20

WC20

WCS20

-7~20



2.47

25

WC25

WCS25



3.85

30

WC30

WCS30



Not less than 20

5.55

35

WC35

WCS35

-9-25



7.55

40

WC40

WCS40



Not less than 25

9.87

50

WC50

WCS50



15.4

60

WC60

WCS60

-10-29



Not less than 30

22.2

80

WC80

WCS80



39.5

100

WC100

WCS100

-12-34



61.7

120

WC120

WCS120



88.8

150

WC150

WCS150

-14~39



139.0





Product Display








Company Background





Lishui Jiesheng Transmission Co., Ltd. focuses on high-performance automation transmission products, with a wide range of products, such as precision ball screws, heavy-duty linear guides and so on. The company has strong innovation ability, many products have been awarded national patents, through the international authoritative certification, first-class quality.


The products have excellent performance and are widely used in medical, printing, chemical, woodworking, automation and other fields. With exquisite craftsmanship, high-quality products and attentive service, they are well recognised by customers all over the world. We insist on providing customers with high-quality products and efficient service to create value, and look forward to working with you to open a new chapter of cooperation.




FAQ





Q: I have a special size requirement, can you customise Rail Shaft and how long is the lead time?


A: No problem at all! As long as you put forward reasonable size requirements, our professional team can tailor-made. From the communication of requirements, design drawings to production and delivery, the general cycle of customisation is about 15-20 days. During this period, we will maintain close communication with you to ensure that the customised products meet your expectations.


Q: If I purchase in bulk, can I get a better price? How long is the lead time?


A: We can offer discount for large quantity purchase, the specific discount depends on the purchase quantity. Delivery cycle, about 10 days for regular orders, 15-20 days for large orders, we will reasonably arrange the production to ensure on-time delivery.


Q: If there is any problem with Rail Shaft after purchase, what is the after-sales response speed?


A: Our after-sales team is on standby for 7×24 hours, once we receive your feedback, we will give you a preliminary solution within 2 hours.
